AirLink 192

This controller is a universal intelligent lighting controller. It allows to control 12 fixtures composed of 16

channels each and up to 184 programmable scenes. Six chase banks can contain up to 184 steps

composed of the saved scenes and in any order. Programs can be triggered by music, midi,automatically or manually. All chases can be executed at the same time.

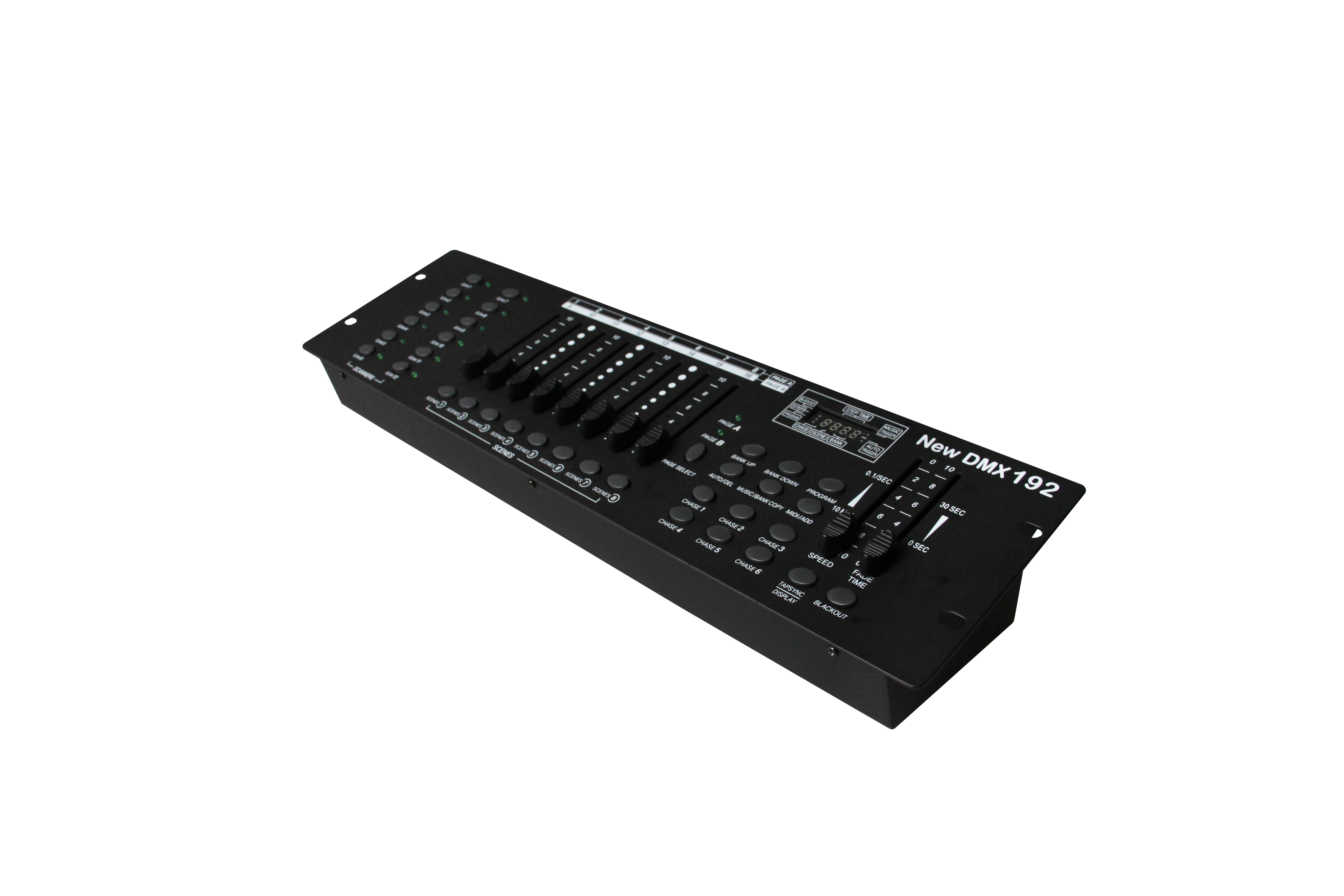

On the surface you will find various programming tools such as 8 universal channel sliders, quick access scanner and scene buttons, and an LED display indicator for easier navigation of controls and menu functions.

This controller is a wireless DMX console transmitting standard DMX512 protocol data in both wireless and cable way. It gets rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable.

- DMX512/1990 Standard.

- Control 12 intelligent lights of up to 16 channels, totally 192 channels.

- 23 banks, each with 8 scenes; 6 chase, each with up to 184 scenes.

- Record up to 6 chases with fade time and speeds.

- 16 sliders for direct control of channels.

- MIDI control over banks, chases and blackout.

- Built-in microphone for music mode.

- Black out.

- 4 digital LED display. 1st chases, 2nd scenes, 3rd & 4th banks.

- Auto mode program controlled by fade time sliders.

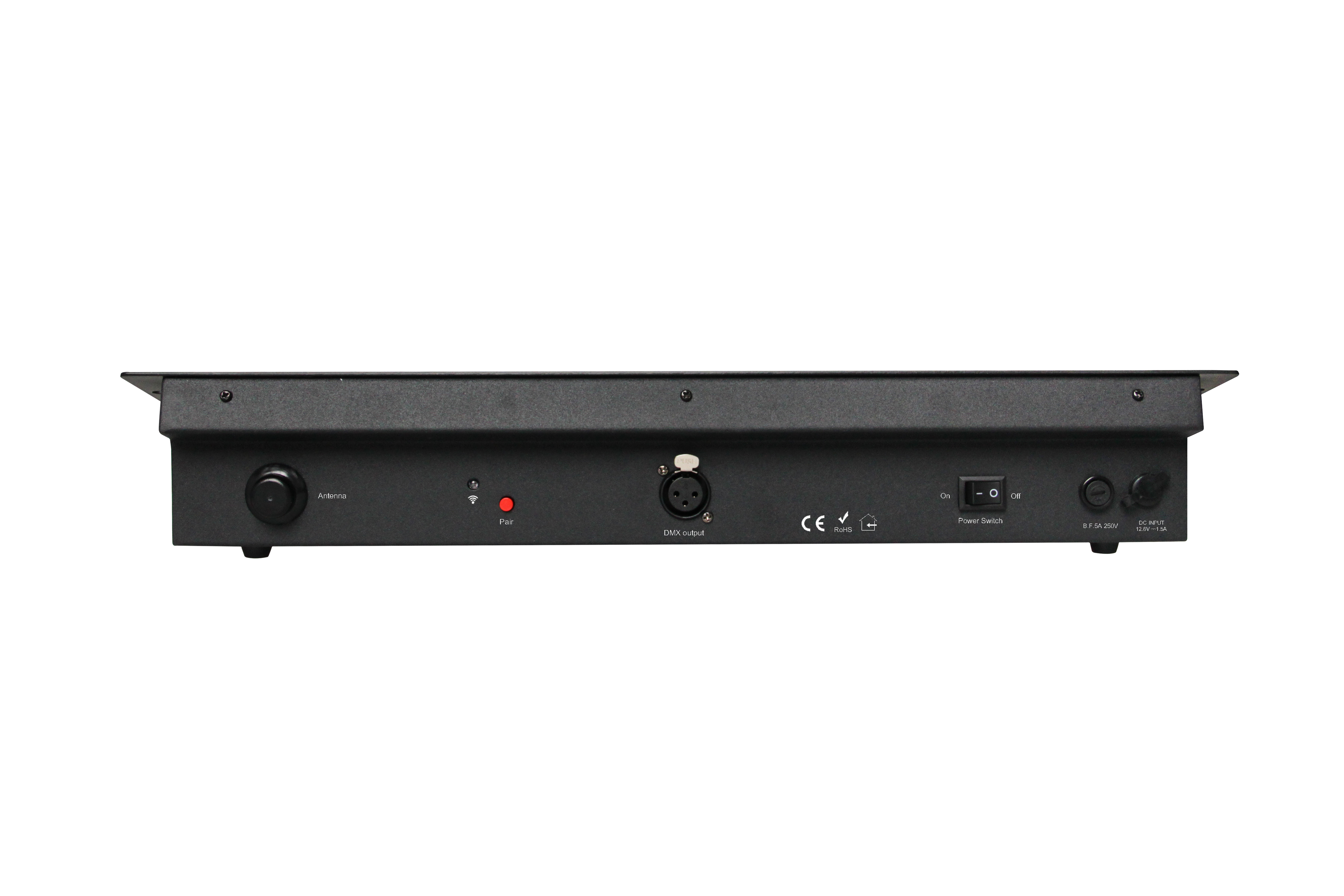

- DMX out: 3 pin XRL.

- Auto-saving the last running program when power off and continue to run the last running

program while switch ON again.

Power input	100~240V AC 50/60HZ
Power consumption	8W max.
Battery	11.1V 4.8Ah
Battery life	9.0 hours max.
Charge time	Around 3.0 hours
Frequency	2.4 GHz ISM band, 58 channels
Working coverage	About 200m(Line-of-sign)
DMX channel	192 channels
DMX connector	3-pin XLR output
Dimensions	482 x133 x 82 mm
Net wight	2.5kg
